Play 42 MK II PM
Double your Fun
Certification: Afnor – Tandem
Wing Suitablility
Manual
Characteristics
TAKE OFF
Behaves just like a Tandem workhorse should – Easy and Predictable.
LANDING
Efficient Flare combined with a low sink rate and approach gives a great landing, even at higher elevations and light wind conditions.
THERMALLING
Climbs well, even in small light cores.
PERFORMANCE
Perfect wing for doing laps at the tandem hill, be it top to bottom or top landing – the play will play well all day long.
PILOT FEEDBACK
The perfect colleague for the working pilot
CONSTRUCTION
According to Apco’s legendary tradition for durability – the construction of the wing is bullet proof! Extremely durable cloth combined with proven construction designed to meet the working pilots needs.
Vista IV
Safe, reliable, perfect launching workhorse tandem wing
Features
Certification
| Play 42 |
|---|
| ACPUL/ AFNOR Biplace |
| DGAC |
Play42 MK II / UL proved itself a masterpiece of engineering and construction. The Play 42 is a safe, reliable, perfect launching tandem wing – The tool of choice for professional tandem pilots around the globe.
The Play42 MK II retains the good qualities of its predecessors, with excellent launch, perfect flare, improved handling & thermaling capacity, wider speed range and lighter brake pressure.
Simple to use and straightforward to fly – allowing the pilot to concentrate on the passenger and let the wing do all the rest. With the Play42 MK II, every launch is a successful take-off.
Durable, smart construction with use of Apco’s double silliconized cloth will result in more flying hours then any other wing, providing the best possible value for money.
Fast, the Play42 MK II is a fast wing. With a maximum speed of 45+ [km/h], the Play42 MK II is fast and still remains efficient with it’s classic profile.
The wide speed range adds an extra level of safety as into the wind penetration is improved.

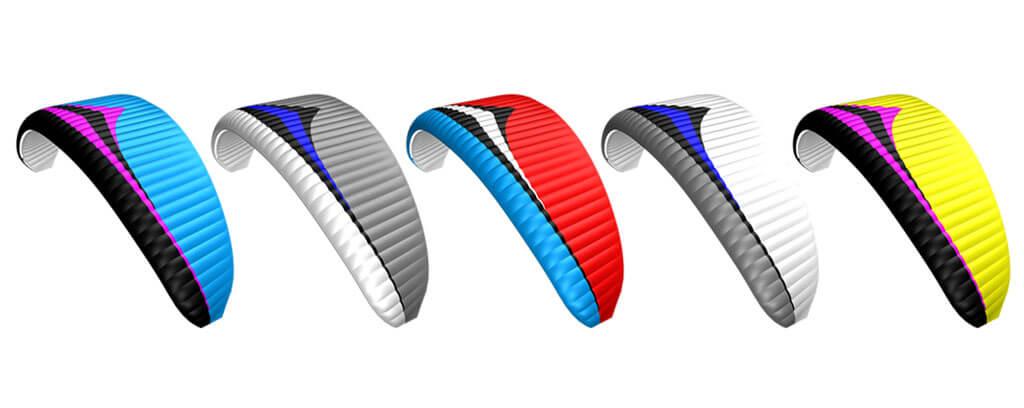

Vibrant color designs dress the Play42 MK II. If you are looking for the perfect tandem machine – look no further. Give the Play42 MK II a try.
- Wide speed range with higher than average trim speed and excellent wind penetration
- Stable, inherent, auto-correcting flying characteristics – no roll or pitch
- Direct & precise handling, lighter brake pressure
- Improved bank angle coordination for effortless thermaling
- Improved Trim System: One-hand friendly, easier in-flight adjustment
- Replacable, no-slip, trimmer webbing, in combination with heavy duty kamet buckle
- Heavy duty Swivels on the brakes
- Integral, built-in, Neodymium brake magnets with male/female connection
- Sand removal system “butt-holes”
- Vastly improved thermaling capacity – even with engine on idle
- Logo-ready bottom surface
- HIT valve® equipped on L/E for rock solid stability. find out more »
- Vibrant color designs
- Double coated siliconised cloth (covered by 3 years / 250 hours warranty)
Gallery
More Information
The bottom surface of the play for 2 has made white especially for advertising purposes or placing of custom logos.
| PLAY 42 MKII | 42 |
|---|---|
| Cells | 46 |
| Area [m2] | 42 |
| Area (projected) [m2] | 35.4 |
| Span(incl. Stabiliser) [m] | 14.6 |
| Span (projected) [m] | 12.1 |
| Aspect Ratio | 5.1 |
| Aspect Ratio (projected) | 4.1 |
| Take off Weight (all up) [kg] | 140-240 |
| Canopy Weight [kg] | 8.4 |
| Root Cord m | 3.47 |
| Tip Chord [m] | 0.66 |
| Length of Lines on B [m] | 8.5 |
| Total Length of Lines [m] | 496 |
| V-min [km/h] @ optimum wing load | 23 |
|---|---|
| V-trim [km/h] @ optimum wing load | 38 |
| V-max [km/h] @ optimum wing load | 45+ |
| Min Sink [m/s] @ optimum wing load | 1.1 |
The glider is made from tear resistant Ripstop Nylon cloth, which is P.U. coated to zero porosity and then siliconized to give the fabric high resistance to the elements. Different cloth is used for the top, bottom and ribs due to their different functions.
The lines are made of superaramid covered with a polyester sheath for protection against UV, wear and abrasion. The bottom section of the brake lines is made of Polyester because of its better mechanical properties. The Karabiners/rectangular loops that attach the lines to the risers are made of stainless steel.
| Material | Diameter [mm] | Strength [kg] | |
|---|---|---|---|
| Top | Superaramide | 1.2 | 110 |
| Middle | Superaramide | 1.8 | 230 |
| Bottom | Superaramide | 2.5 | 450 |
| Brakes (upper cascade) | Dyneema | 1.1 | 95 |
| Brakes (lower - steering line) | Dyneema | 2.3 | 230 |
| Sail Cloth | 42 gr/m2 "Zero Porosity" Ripstop Nylon |
| Rib Reinforcement | FLEXON® batten system |
| Warranty | 3 years / 250 Hours |
Read and download our 3 Year / 250 Hour warranty certificate.
Learn more about our outstanding factory service.
Order replacement lines from our Line Shop.
- Glider Backpack or light clinch bag
- Glider stuff bag
- Closing belt
- Riser sock
- Wind sock
- Warranty, manual, stickers, dvd and repair kit
Frequently Asked Questions
Custom Logo Design
It is available on Vista IV, please contact us for more information.
Options and Accessories
42459: Light Clinch Bag
198.00$Durable, Comfortable.Made from LightRipstop material. Large Carry Bag for Quick packing of all your equipment. Holds unfolded glider, Harness, Helmet, etc. easily and quickly.
Weight – 500gr.
Open dimensions (Spread Flat): 1.2m x 1.2m
57010: Paramotor Tandem Spreader Bar Set
235.00$Sold as a set of 2.
Paramotor Tandem Spreader Bar with wide spread to accommodate use with motor.
It has multiple attachment points for easy balancing of the passenger in relation to the pilot. 5 main hook-in points for any pilot, paramotor and passenger weight combinations.
Additionally 2 different height passenger connection points.
PLEASE NOTE:
This product is NOT designed for high load aerobatic maneuvers/aerobatics!
