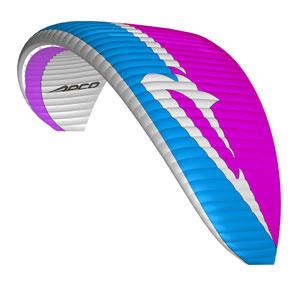

Vista V

null
The view from the TOP

Certification: EN B (Intermediate)

The Vista has become a legend in its own time… Now in its 5th generation, it is lighter, cleaner and with all the latest materials & construction technologies incorporated.

Back in 2014, when Vista III was first introduced, it was a groundbreaking wing. An EN B certified true 3 liner (top to bottom), shark nose wing that performs and feels like a well tuned racing car which excels in strong conditions ! It has set a standard for many other competitor models which came after..

The new Vista V is based on the platform of Vista IV and improved on several key points:

Over 700 grams lighter in the M size, but uncompromising materials / durability. This result in better inflation and in-flight characteristics.

Re-Optimised 3D leading edge cut smartly incorporated into the colour design – resulting in a cleaner leading edge, improved top surface layout and tension for better performance.

Risers- Perfect 12 [mm] webbing risers with incredible attention to details. They are super-lightweight at less than 99 gr! Incorporating a unique A5, C5 (Split A, C) line connection method with no Karabiners! Making it cleaner, safer, lighter – smart and elegant. The risers also feature specifically designed ball bearing pulleys allowing for the smoothest speed system operation possible, and now the same brake pulleys are mounted on a custom elasticated tubular webbing.

The Vista V now also sports the Butthole 2, which automatically clears sand and debris from the wingtip trailing edges.

Vista V flight characteristics can be described as a very solid canopy which reassures the pilot with its consistency and pitch damping characteristics.
The wing transmits an incredible reassuring feeling of safety to the pilot, building confidence, for better piloting.

Vista V will be the perfect companion for any pilot from a talented school student to cross country pilot looking for a good performing, safe and easy to manage wing.

The Vista V is also available with motor risers.
The lightweight canopy makes a huge difference for nil wind forward launches. Its pitch stability turns it into a very pleasant paramotor wing as it cuts through the air almost unaffected by small turbulence. Coupled with its performance, it is a highly efficient paramotor wing perfect for electric engines or low power motors.

The paramotor risers are equipped with trimmers. The flight characteristics remains within the certification while the trimmers are in the closed position. The full test procedures have however been completed in house on these risers with the trimmers in the open position. You can order the Trim Risers (Product Code: 78800P) from your dealer.

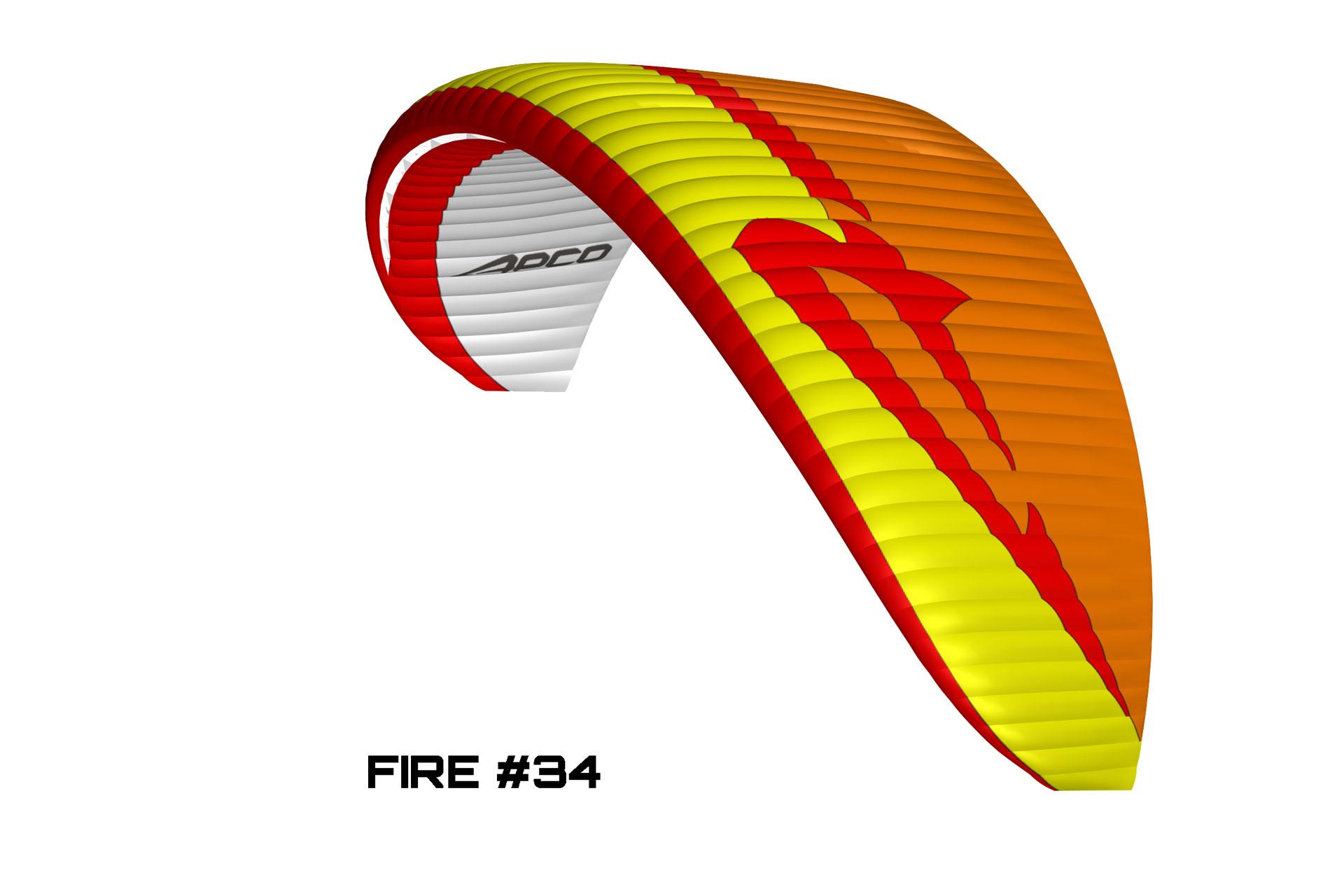

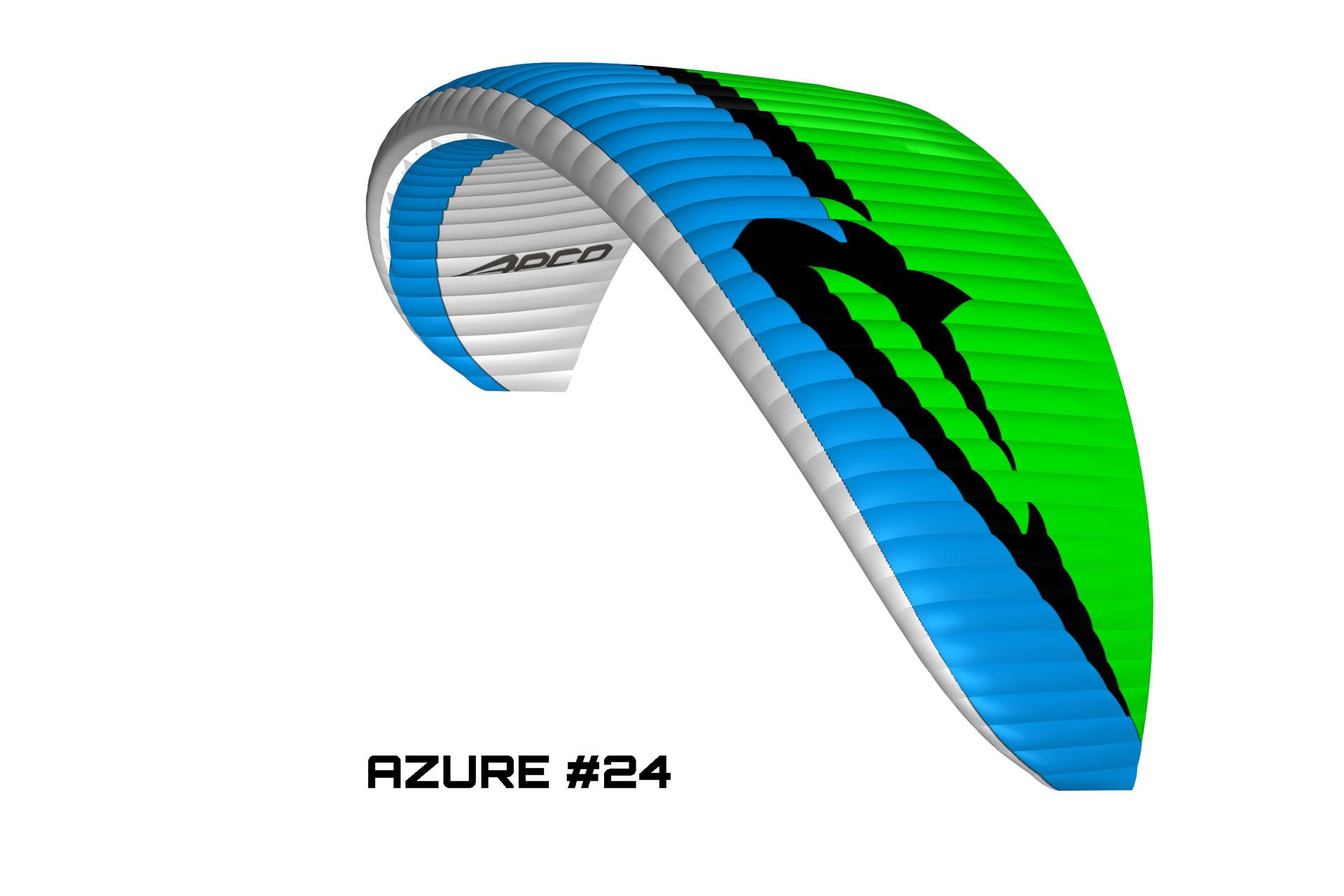

Colors representing the new spirit of APCO Aviation, both striking and functional as they incorporate the 3D cut, allowing for a balanced combination of different fabrics according to their position on the wing.

VISTA VX-SmallSmallMediumLarge
Cells49505254
Area [m2]24.825.727.529.3
Area (projected) [m2]21.121.8823.2124.93
Span(incl. Stabiliser) [m]11.4311.7612.4113.06
Span (projected) [m]8.839.169.7310.3
Aspect Ratio5.35.45.65.8
Aspect Ratio (projected)3.693.834.084.25
Pilot Weight (all up) free flight [kg]55-8070-9590-110105-130
Pilot Weight (all up + paramotor unit) [kg]70-11085-12595-140120-160
Canopy Weight [kg]4.64.85.15.4
Root Cord m2.722.722.722.72
Tip Chord [m]0.520.520.520.52

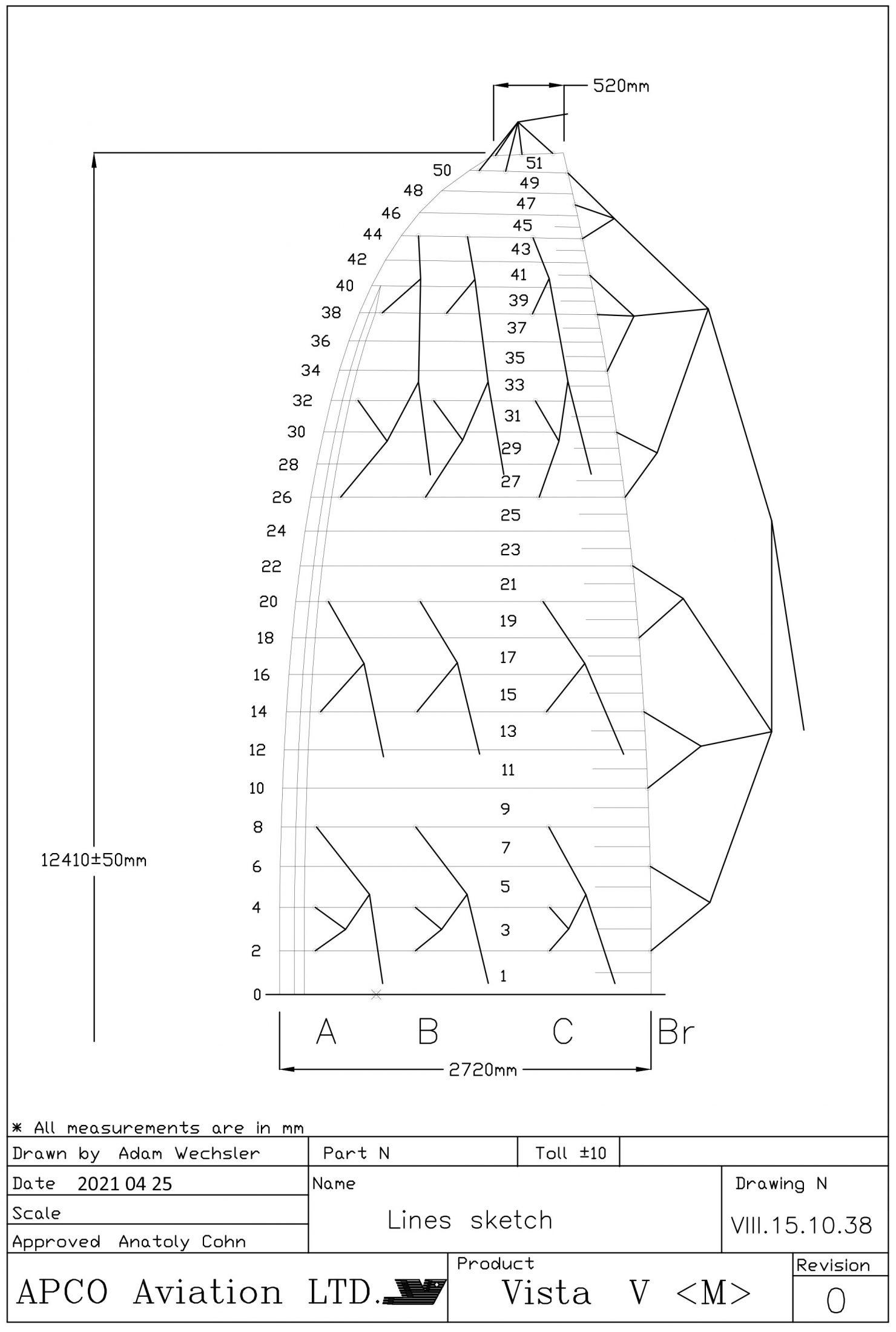

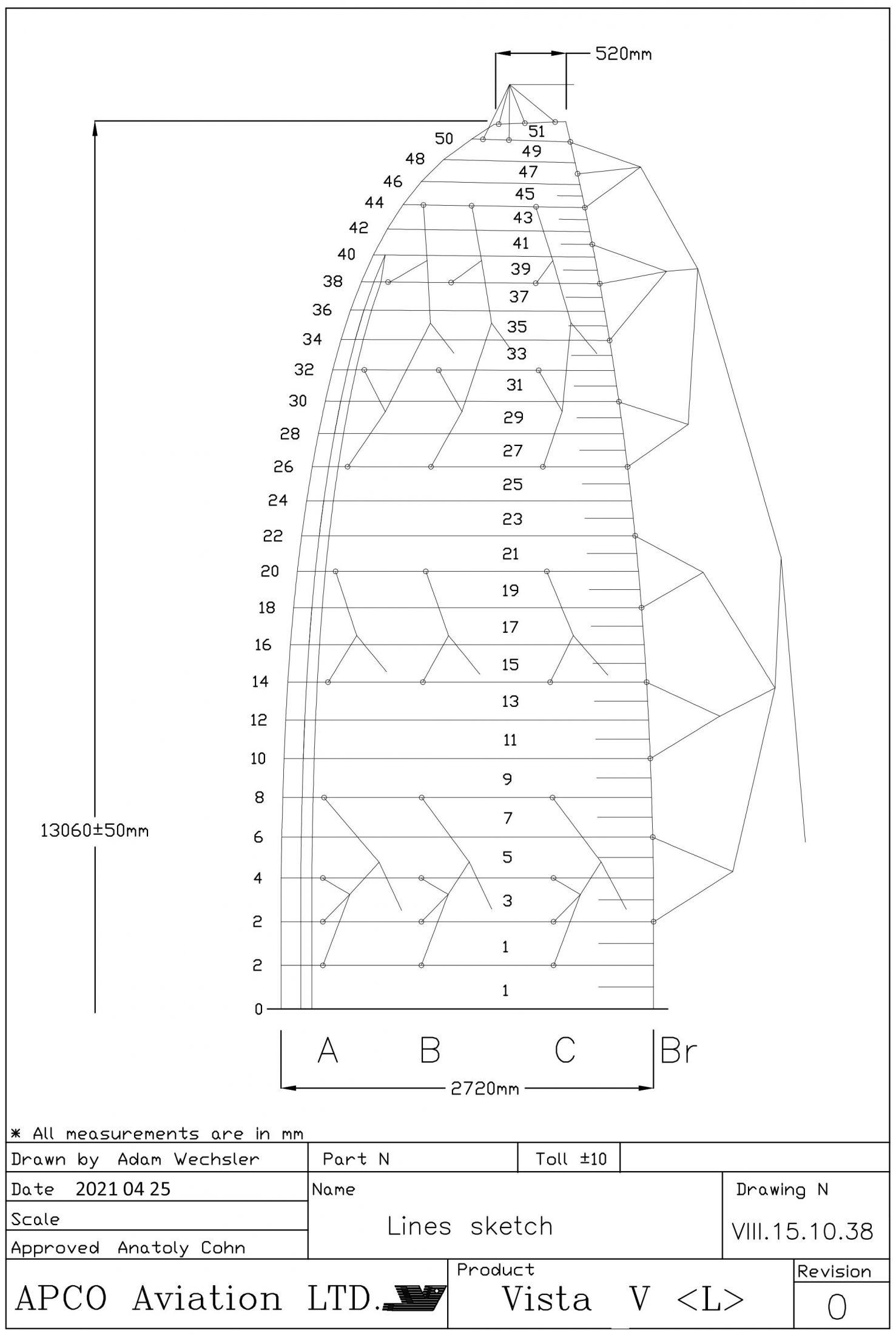

Length of Lines on B [m]6.616.897.458.01
Total Length of Lines [m]244252268284
V-min [km/h]21
V-trim [km/h]39
V-max [km/h]51+
Min Sink [m/s] at optimal wing loading0.95

WHATS NEW IN THE MATERIALS OF THE VISTA V?
Without compromising on durability or safety, the Vista V is made from carefully chosen materials, to reduce weight. The top surface L/E remains the same bombproof apco cloths, while areas that do not suffer from use / wear and tear, such as the bottom surface, are now much lighter. This translates into better launch, handling and safety characteristics.

MaterialDiameter [mm]Strength [kg]
Top, MidSuperaramide1.2120
Bottom A, B, CSuperaramide1.9320
Bottom StSuperaramide1.5150
Brake top, St topDyneema1.195
Brake bottomPolyester2.085
Sail Cloth - Top42 gr/m2 "Zero Porosity" Ripstop Nylon
Sail Cloth - Bottom27gr Skytex
Rib Cloth27gr Skytex Hard
Rib ReinforcementFLEXON® batten system
Warranty3 years / 250 Hours

The glider is made from tear resistant Ripstop Nylon cloth, which is P.U. coated to zero porosity and then siliconized to give the fabric high resistance to the elements. Different cloth is used for the top, bottom and ribs due to their different functions.

The lines are made of superaramid covered with a polyester sheath for protection against UV, wear and abrasion. The bottom section of the brake lines is made of Polyester because of its better mechanical properties. The Karabiners/rectangular loops that attach the lines to the risers are made of stainless steel.

Read and download our 3 Year / 250 Hour warranty certificate.

Learn more about our outstanding factory service.

Order replacement lines from our Line Shop.

What's new in the materials of the VISTA V?

Without compromising on durability or safety, the Vista V is made from carefully chosen materials, to reduce weight. The top surface L/E remains the same bombproof apco cloths, while areas that do not suffer from use / wear and tear, such as the bottom surface, id nor much lighter. This translates into better launch, handling and safety characteristics.

How does it handle strong turbulent conditions.

The stronger the conditions – The bigger the advantages of the Vista V. it is a very rigid canopy that inspires confidence..

In the Box

  • The right to change prices, specifications or equipment at any time without notice is reserved.

Options

Customise your Vista V order with these accessories

42479: Light Backpack 80 [Ltr]

298.00$

At only 595 grams, it is one of the lighter bags on the market in this class.
Large enough to hold a standard paraglider with a lighter harness and other essentials.

50011: Custom Colour

Apco Gliders can also be ordered with custom colors to suit your needs, be it a personal preference or for advertising purposes.

Gallery

Wing Suitability

Certification

SizeCertification Type
XSEN B*
SEN B
MEN B
LEN B
* Pending

Characteristics

  • TAKE OFF

    The APP profile (shark nose) profile with lighter materials, helps this wing to have an easy balanced inflation, The wing will rise easily and controllably overhead without a tendency to overshoot or lift the pilot if checked overhead.

  • LANDING

    Simple, predictable approach and flair to a standstill.

  • THERMALLING

    The Vista V will easily settle in a constant angle of bank turn in a thermal, requiring very little input once centred, resulting in a superior climb rate, which will have you at the top of the gaggle in no time.

  • PERFORMANCE

    Best Glide will be achieved at 1/3 speed bar, and the APP / sharknose profile keeps the wing highly pressurised and collapse resistant throughout the speed range.

  • PILOT FEEDBACK

    simple to understand is how to summarise the Vista V. The wing is both reassuring and precise in its pilot feedback. It is a forgiving wing for beginners, and when directed correctly, it will immediately respond without hesitation.

  • CONSTRUCTION

    According to Apco’s legendary tradition for durability – the top surface is APCO’s double siliconised cloth. Bottom surface and internal parts from lightweight materials to save weight without compromising on durability.

  • Vista V

    Vista V is fun to fly and will even excite pilots for long cross country flights. Great and secure glider at the same time to enjoy for hours on end

Features

  • null

    DSC

    DSC – Double Siliconized Cloth

  • null

    APP

    Automatic Pressurising Profile

  • null

    L/E FLEXON battens®

    A system for improved launch, lighter weight, prolonged lifespan

  • null

    3D Cut

    Additional 3D cut on the leading edge for clean construction and improved profile definition

  • null

    BBP

    Air Extreme Ball bearing Pulleys ®

  • null

    BT2

    BUTT HOLES 2

  • null

    LDT

    Low Drag Tensioners
    The Sleekest Trailing Edge Tensioners available

  • null

    LSR

    Latest laser cutting technology.

  • null

    NBM

    Integral built-in neodymium brake magnets

  • null

    EHP

    Embedded Hook-In Points

Manual

Apco Vista Manual (Download Pdf)
