Vista VI

null
The view from the TOP

Certification: EN B (Intermediate)

The Vista has become a legend in its own time… Now in its 6th generation, it is lighter, cleaner and with all the latest materials & construction technologies incorporated.

The Vista VI is APCO’s middle B, designed for talented beginners or pilots who wish to step up to the B category with a very calm, safe and easy wing to fly.

Vista VI is a very solid canopy which reassures the pilot with its consistency and pitch damping characteristics.
The wing especially excels in strong conditions with its solidity and homogenous feeling. It will reassure the pilot with its safety, build confidence, allowing for continuous improvement in cross country skills.

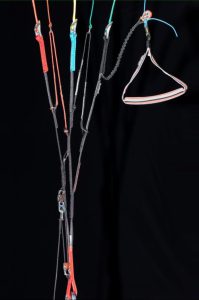

Vista VI is offered with 2 different types of risers:

  • C-steering risers – equipped with C-steering system for building piloting skills and active flying on speed bar  – recommended for pilots stepping up from an A wing.
  • Standard 3 line risers  – Lightweight (99 Gr) made from 12mm. kevlar polyester webbing with APCO’s proprietary V-links. Simple to understand, clean design, recommended for pilots who do not need C-steering option.

C-Steering Riser

Standard 3-line riser

Please indicate which risers are preferred when ordering – in absence of mentioning wing will be supplied as default with Standard 3-line risers.

Vista was the first true 3 liner EN-B wing (2014) introduced to the market, a groundbreaking wing in its time featuring shark-nose and a true 3 line, 3 riser set up.  Vista VI continues the heritage, and has matured into a proven solid, well performing middle B-Class wing.



Additional main features of the Vista VI:

  • Impressive performance for the category, Designed for performance, and fine tuned for easy flying!
  • Lightweight, yet durable – Vista VI starts at 4.6 kg. without sacrificing any durability whatsoever!
  • True 3 liner throughout the span of the glider down to the risers
  • Optimized line materials – sheathed bottom lines, connected to unsheathed middle and top floor lines for weight saving and aerodynamics.
  • Mini ribs (MRB) – for laminar trailing edge flow.
  • 3D Cut on both top and bottom surface. For clean, wrinkle-free surfaces.
  • Brake Tensioners on trailing edge – progressive and responsive brake action.



The Vista VI is also available with motor risers.
The lightweight canopy makes a huge difference for nil wind forward launches. Its pitch stability turns it into a very pleasant paramotor wing as it cuts through the air almost unaffected by small turbulence. Coupled with its performance, it is a highly efficient paramotor wing perfect for electric engines or low power motors.

The paramotor risers are equipped with trimmers. The flight characteristics remains within the certification while the trimmers are in the closed position. The full test procedures have however been completed in house on these risers with the trimmers in the open position. You can order the Trim Risers (Product Code: 78800P) from your dealer.

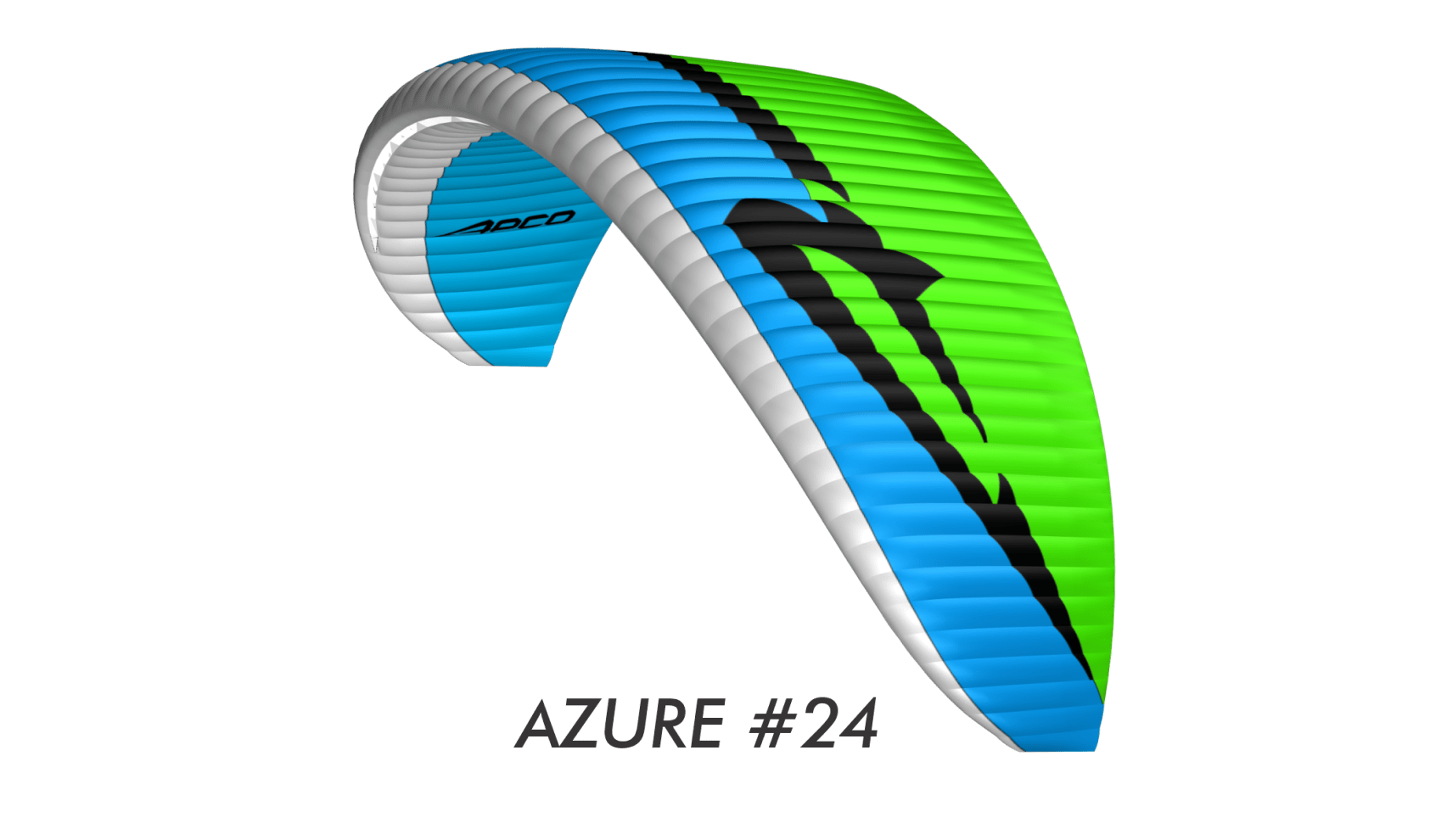

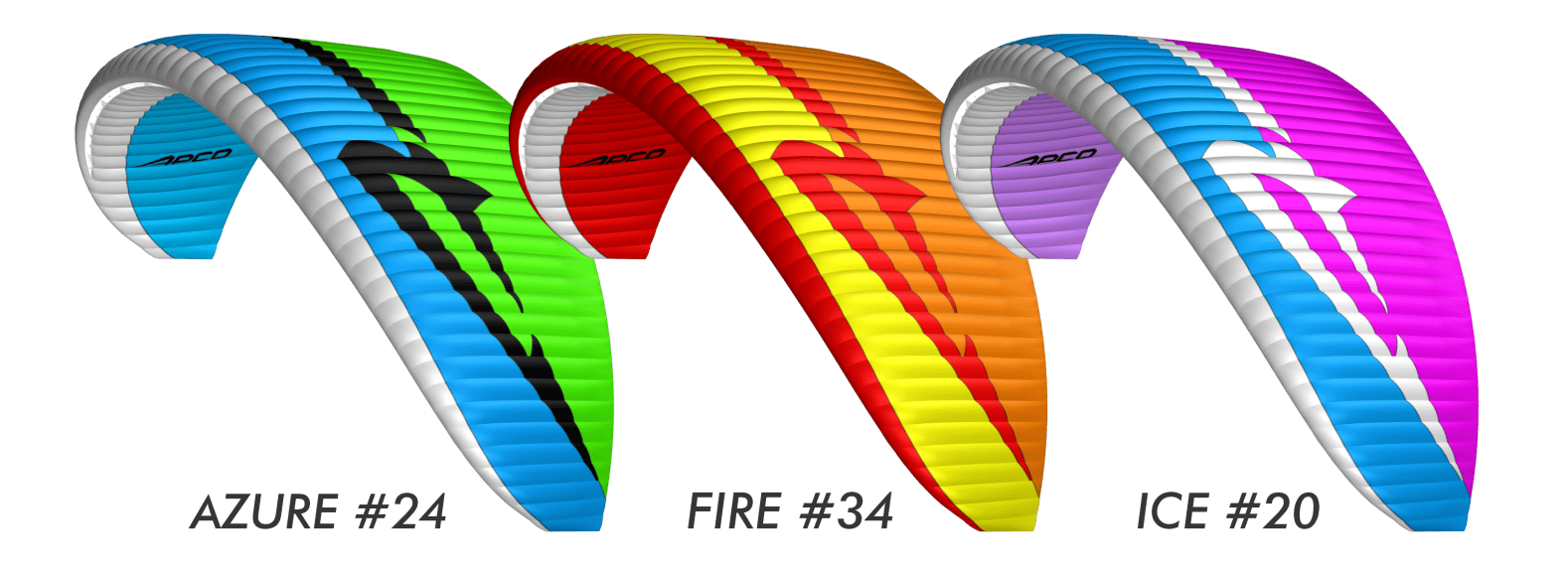

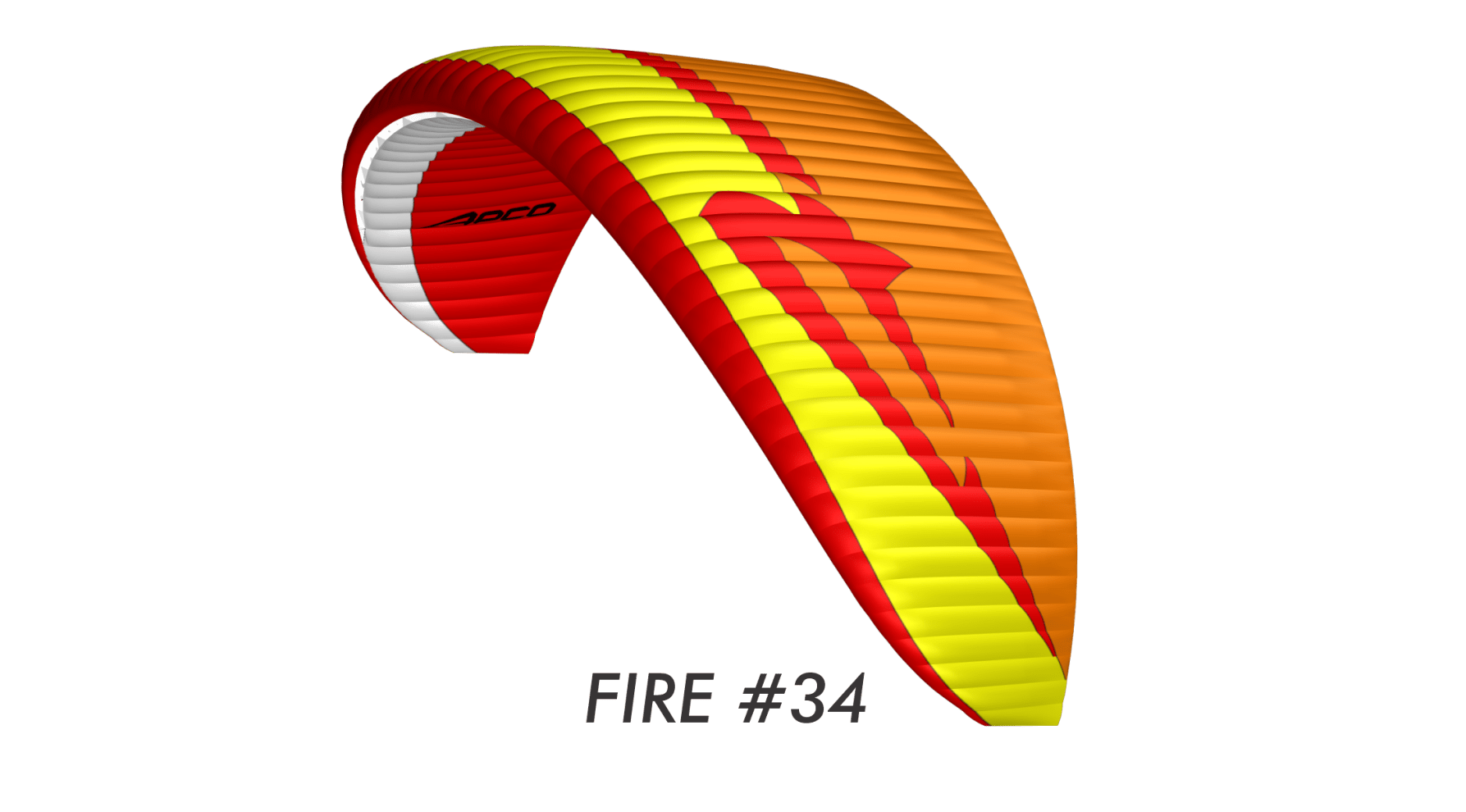

Colors representing the new spirit of APCO Aviation, both striking and functional as they incorporate the 3D cut, allowing for a balanced combination of different fabrics according to their position on the wing.

WHATS NEW IN THE MATERIALS OF THE VISTA VI?
Without compromising on durability or safety, the Vista VI is made from carefully chosen materials, to reduce weight. The top surface L/E remains the same bombproof APCO cloth, while areas that do not suffer from use / wear and tear, such as the bottom surface, are now much lighter. This translates into better launch, handling and safety characteristics.

MaterialDiameter [mm]Strength [kg]
Top, MidSuperaramide1.2120
Bottom A, B, CSuperaramide1.9320
Bottom StSuperaramide1.5150
Brake top, St topDyneema1.195
Brake bottomPolyester2.085
Sail Cloth - Top42 gr/m2 "Zero Porosity" Ripstop Nylon
Sail Cloth - Bottom27gr Skytex
Rib Cloth27gr Skytex Hard
Rib ReinforcementFLEXON® batten system
Warranty3 years / 250 Hours

The glider is made from tear resistant Ripstop Nylon cloth, which is P.U. coated to zero porosity and then siliconized to give the fabric high resistance to the elements. Different cloth is used for the top, bottom and ribs due to their different functions.

The lines are made of superaramid covered with a polyester sheath for protection against UV, wear and abrasion. The bottom section of the brake lines is made of Polyester because of its better mechanical properties. The Karabiners/rectangular loops that attach the lines to the risers are made of stainless steel.

Read and download our 3 Year / 250 Hour warranty certificate.

Learn more about our outstanding factory service.

Order replacement lines from our Line Shop.

What's new in the materials of the VISTA VI?

Without compromising on durability or safety, the Vista VI is made from carefully chosen materials, to reduce weight. The top surface L/E remains the same bombproof APCO cloth, while areas that do not suffer from use / wear and tear, such as the bottom surface/low stress bearing internal parts are made from much lighter 27 gr. material. This translates into better launch, handling and safety characteristics.

How does it handle strong turbulent conditions.

The stronger the conditions – The bigger the advantages of the Vista VI. it is a very rigid canopy that inspires confidence..

In the Box

  • The right to change prices, specifications or equipment at any time without notice is reserved.

Options

Customise your Vista V order with these accessories

42479: Light Backpack 80 [Ltr]

298.00$

At only 595 grams, it is one of the lighter bags on the market in this class.
Large enough to hold a standard paraglider with a lighter harness and other essentials.

50011: Custom Colour

Apco Gliders can also be ordered with custom colors to suit your needs, be it a personal preference or for advertising purposes.

VISTA VIX-SmallSmallMediumLarge
Cells49505254
Area [m2]24.825.727.529.3
Area (projected) [m2]21.121.8823.2124.93
Span(incl. Stabiliser) [m]11.4311.7612.4113.06
Span (projected) [m]8.839.169.7310.3
Aspect Ratio5.35.45.65.8
Aspect Ratio (projected)3.693.834.084.25
Pilot Weight (all up) free flight [kg]55-8070-9590-110105-130
Pilot Weight (all up + paramotor unit) [kg]70-11085-12595-140120-160
Canopy Weight [kg]4.64.85.15.4
Root Cord m2.722.722.722.72
Tip Chord [m]0.520.520.520.52
Length of Lines on B [m]6.616.897.458.01
Total Length of Lines [m]244252268284
V-min [km/h]21
V-trim [km/h]39
V-max [km/h]51+
Min Sink [m/s] at optimal wing loading0.95

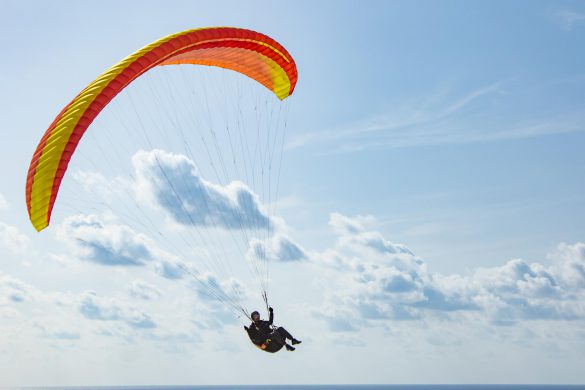

Gallery

Wing Suitability

Approval – ULM identification

SizeCertification Type
XSEN B*
SEN B
MEN B
LEN B
* Pending

Characteristics

  • TAKE OFF

    The APP profile (shark nose) profile with lighter materials, helps this wing to have an easy balanced inflation, The wing will rise easily and controllably overhead without a tendency to overshoot or lift the pilot if checked overhead.

  • LANDING

    Simple, predictable approach and flair to a standstill.

  • THERMALLING

    The Vista VI will easily settle in a constant angle of bank turn in a thermal, requiring very little input once centered, resulting in a superior climb rate, which will have you at the top of the gaggle in no time.

  • PERFORMANCE

    Best Glide will be achieved at 1/3 speed bar, and the APP / sharknose profile keeps the wing highly pressurized and collapse resistant throughout the speed range.

  • PILOT FEEDBACK

    Simple to understand is how to summarize the Vista VI. The wing is both reassuring and precise in its pilot feedback. It is a forgiving wing for beginners, and when directed correctly, it will immediately respond without hesitation.

  • CONSTRUCTION

    According to Apco’s legendary tradition for durability – the top surface is APCO’s double siliconised cloth. Bottom surface and internal parts from lightweight materials to save weight without compromising on durability.

  • Vista VI

    Vista VI is fun to fly and will even excite pilots for long cross country flights. Great and secure glider at the same time to enjoy for hours on end

Features

  • null

    C STR

    C STR – Optional C-Steering handle. Pitch control, with or without speed bar.

  • null

    DSC

    DSC – Double Siliconized Cloth

  • null

    APP

    Automatic Pressurising Profile

  • null

    L/E FLEXON battens®

    A system for improved launch, lighter weight, prolonged lifespan

  • null

    3D Cut

    Additional 3D cut on the leading edge for clean construction and improved profile definition

  • null

    BBP

    Air Extreme Ball bearing Pulleys ®

  • null

    BT2

    BUTT HOLES 2

  • null

    LDT

    Low Drag Tensioners
    The Sleekest Trailing Edge Tensioners available

  • null

    LSR

    Latest laser cutting technology.

  • null

    NBM

    Integral built-in neodymium brake magnets

  • null

    EHP

    Embedded Hook-In Points

Manual

Apco Vista Manual (Download Pdf)
